Specification	Details

Print Technology

Dye-sublimation / resin thermal transfer

Print Capabilities

Single-sided (Simplex)

Print Resolution

300 dpi (300 x 600, 300 x 1200)

Monochrome Print Speed

Up to 880 single-sided cards per hour

Color Print Speed

Up to 225 single-sided cards per hour

Card Capacity (Input)

Up to 125 cards (expandable to 200 cards)

Card Capacity (Output)

Up to 25 cards (expandable to 100 cards)

Reject Hopper Capacity

Up to 10 cards

Card Sizes Supported

Thickness: 0.010 - 0.040 inches (0.25mm - 1.016mm), ID-1, CR-79, CR-80

Operating Temperature

60°F to 95°F (15°C to 35°C)

Operating Humidity

20-80% RH (non-condensing)

Dimensions (L x W x H)

17.4 in x 8.9 in x 9 in (44.2 cm x 22.6 cm x 22.9 cm)

Weight

12.1 lbs (5.49 kg)

Connectivity

USB & Ethernet (Wi-Fi optional)

Warranty

36 months (standard)

Optional Features

Magnetic Stripe Encoding, Smart Card Encoding, Wi-Fi Connectivity

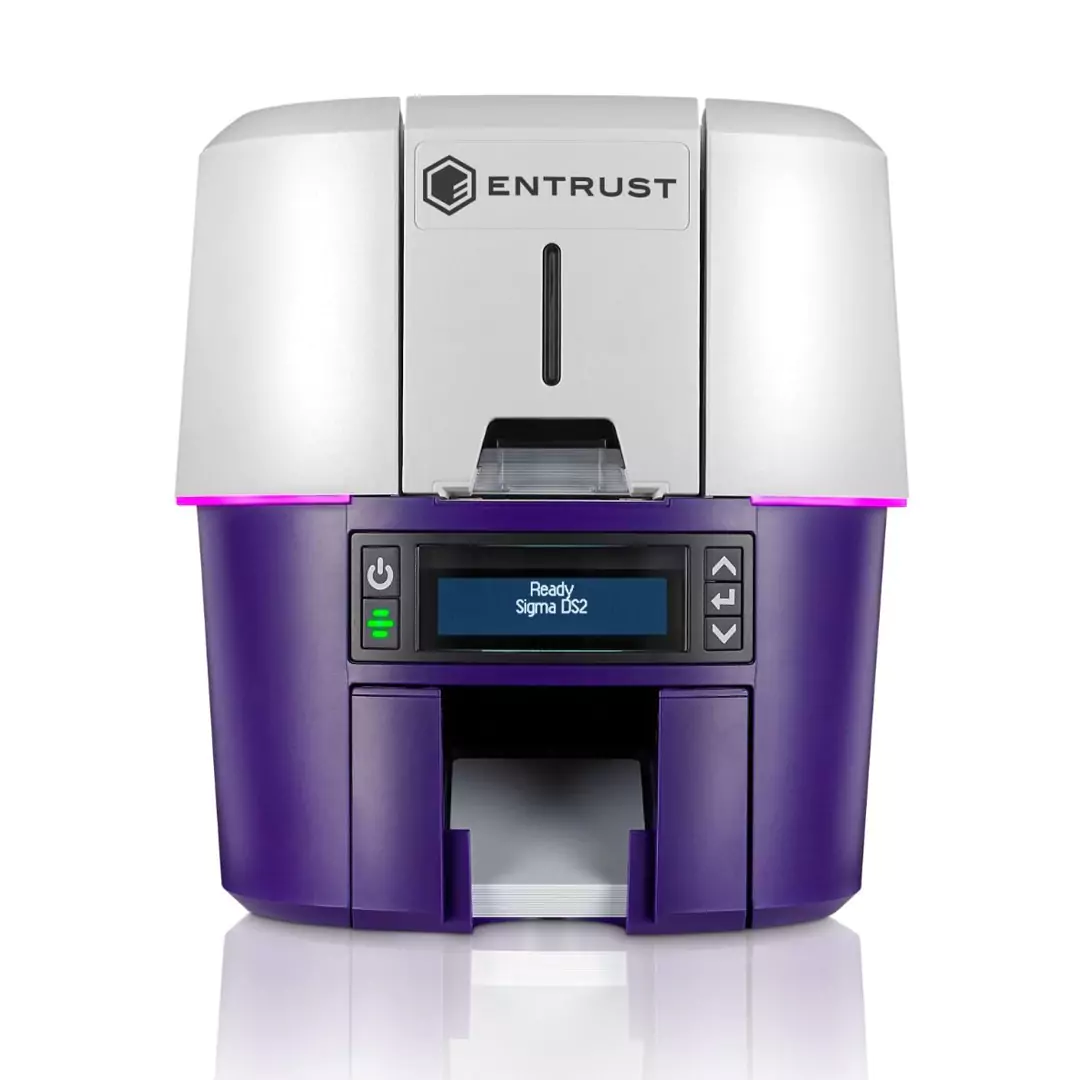

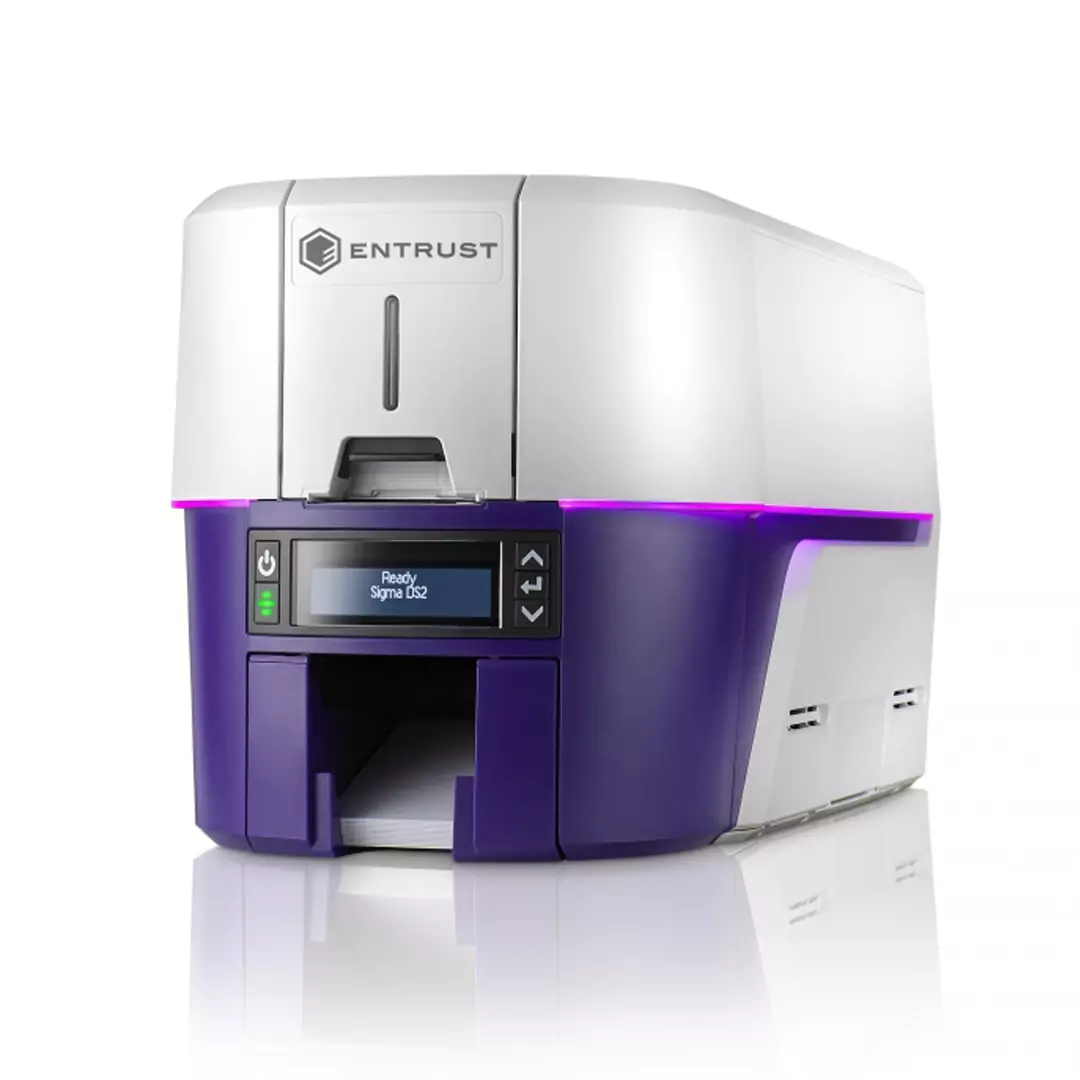

The Entrust Sigma DS2 Simplex ID Card Printer is part of the next generation of direct-to-card printing solutions, designed to meet the evolving needs of secure ID issuance. As an enhanced and faster version of the Sigma DS1, the DS2 offers superior speed, modularity, and industry-leading security features. With capabilities like printing up to 225 full-color cards per hour, it ensures efficiency in high-demand environments. Equipped with both USB and Ethernet connectivity as standard, the DS2 also offers optional WiFi and encoding options for magnetic stripes and smart cards, making it versatile for a variety of applications.

The Sigma DS2 excels in secure card printing, thanks to features like encryption technology and advanced data protection, ensuring that sensitive information stays safe throughout the printing process. Its user-friendly interface allows for easy monitoring and management through mobile devices, making the card issuance process seamless and modern. Designed for organizations requiring high-speed, single-sided card printing, the DS2 is ideal for producing employee IDs, access control cards, student IDs, membership cards, and more.

With a compact design and customizable features like an LED ring for visual integration into different environments, the Sigma DS2 is not only functional but also fits smoothly into various operational settings. Additionally, the printer supports both on-premise and cloud-based issuance, giving flexibility to adapt to different workflows. Backed by a 36-month warranty, this printer ensures reliable performance and long-term investment for secure card issuance.

Key features include high-resolution printing at 300 x 1200 dpi, up to 880 monochrome cards per hour, and a 125-card input hopper with the option to expand to 200 cards for larger print volumes. For enhanced productivity, the DS2 can also be upgraded with features like lamination for more durable cards.
